High Purity Nitrogen Cryogenic Air Separation Plant

Technical Features

Various processes, simple operation

Working Principle

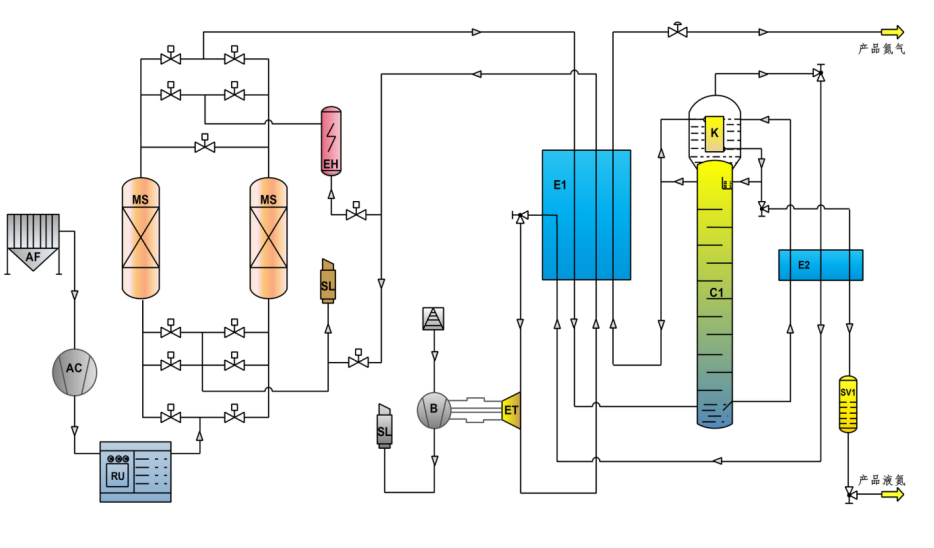

AF-Self-cleaning Air Filters ,    AC-Air Compressor;

RU-Refrigeration dryer,             MS-Purifier;

B-Turboexpander booster,        ET-Turboexpander expansion end;

EH-Electric heaters  E1- Main heat exchanger

C1-Distillation column               E2- Subcooler

K-Main condenser evaporator  SV1-Separation tank

Note

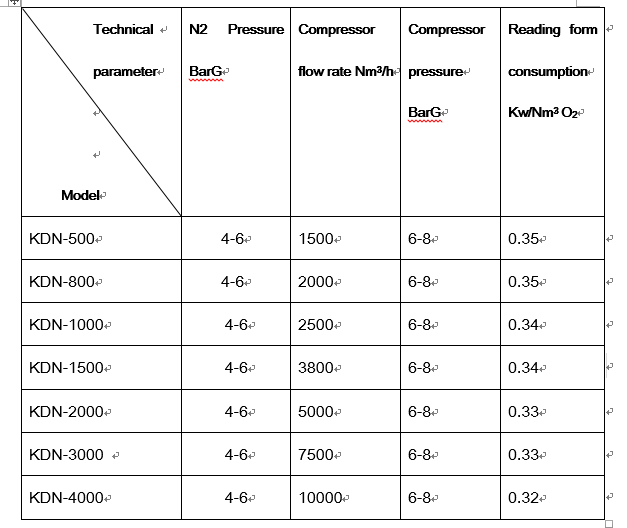

1) The flow unit NM3/h in the table is the gaseous flow measured at 0°C and 101.325KPa.

2) If there is no special requirement, the nitrogen purity of the product is ≤3PPm O2.

3) The technical parameters in the table are only for the user's reference when selecting the model, and the specific parameters can be designed according to the user's requirements.
