VPSA oxygen generators

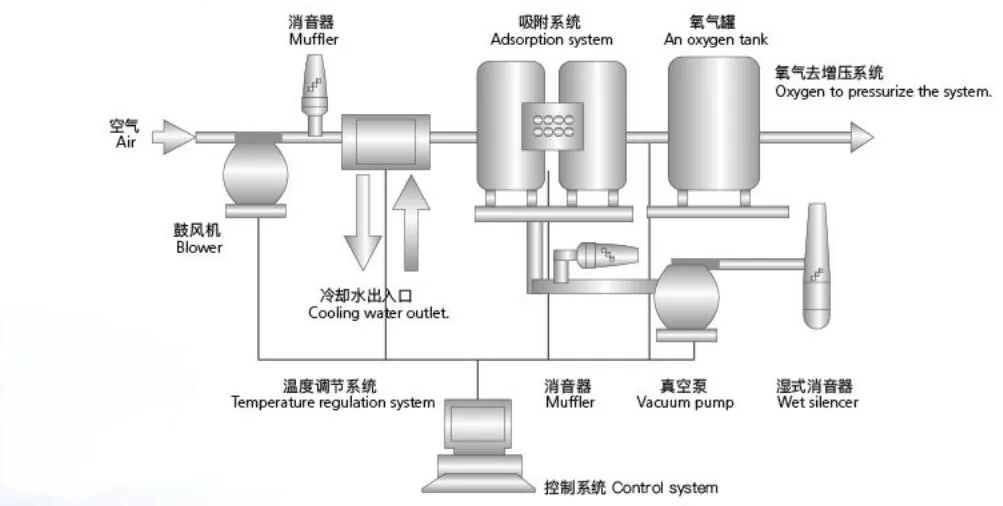

     Working Principle

The main components of the air are nitrogen and oxygen. At normal temperature, the adsorption

capacity between nitrogen and oxygen in zeolite molecular sieves (ZMS) are different (oxygen

passes through, and nitrogen is adsorbed), separating oxygen from the air with proper design.

Nitrogen adsorption capability is higher than oxygen adsorption capacity, When under pressured

air passing through the adsorption tank filled with ZMS, nitrogen and only a little oxygen are

adsorbed, most oxygen are flow out the tank, producing oxygen by separating nitrogen and

oxygen.When ZMS are full of nitrogen, to stop the air and reduce the tank pressure, nitrogen will

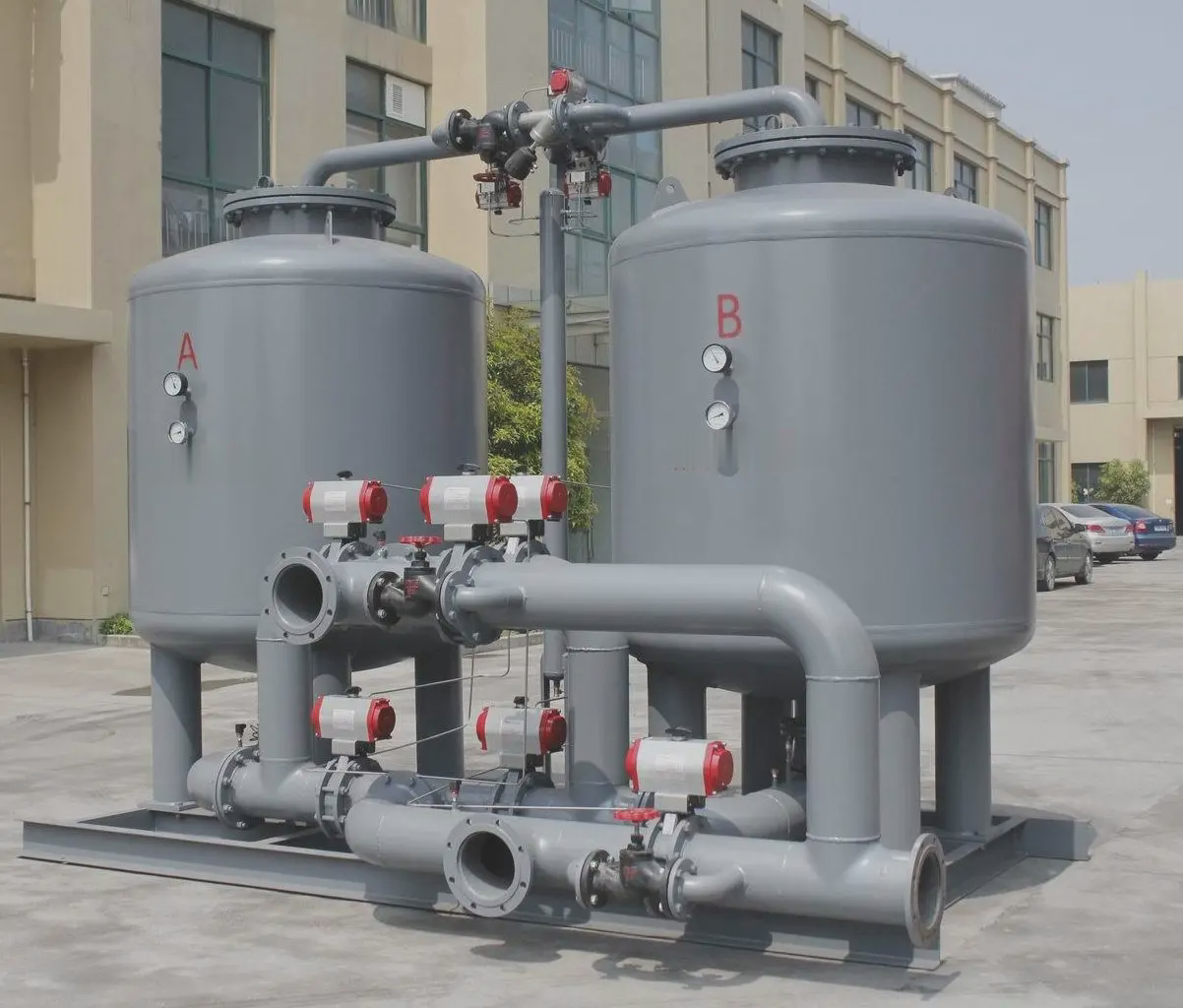

be released by ZMS, so the ZMS will regenerate and reusable. Two or more absorption tanks switch alternatively operation,

 can continue to produce oxygen gas.

  KEY Features

• -Very low power consumption.

• -High flexibility, five minutes to produce qualified oxygen.

• -The oxygen production scale is below 10000m3/h, the oxygen production power consumption is lower, and the investment is smaller;

• -The amount of civil engineering is small, and the installation period of the device is shorter than that of the cryogenic device;

• - operation and maintenance costs of the device are low，with high degree of automation, and it is convenient and quick to start and stop,reducing larbor cost;

• -Strong operation flexibility (superior load capacity and fast conversion speed).

    Main Application Fields

• Medical & Home Care

• Burning Process.

• Waste Water/Sewage Treatment/Hatcheries

• Metallurgy Industry

• Oxygen Enrichment SystemMining,

• Mineral Processing, Gold Processing

• Paper and Pulp Industry

• Ozone Production.

• Chemical Engineering

• Electronics

• Textile

• Petroleum

• Natural Gas Processing

• Food Industry

• Machinery

• Magnetic Materials

• Oxygen Bleaching

• Combustion-supporting

• Furnaces Energy Saving
