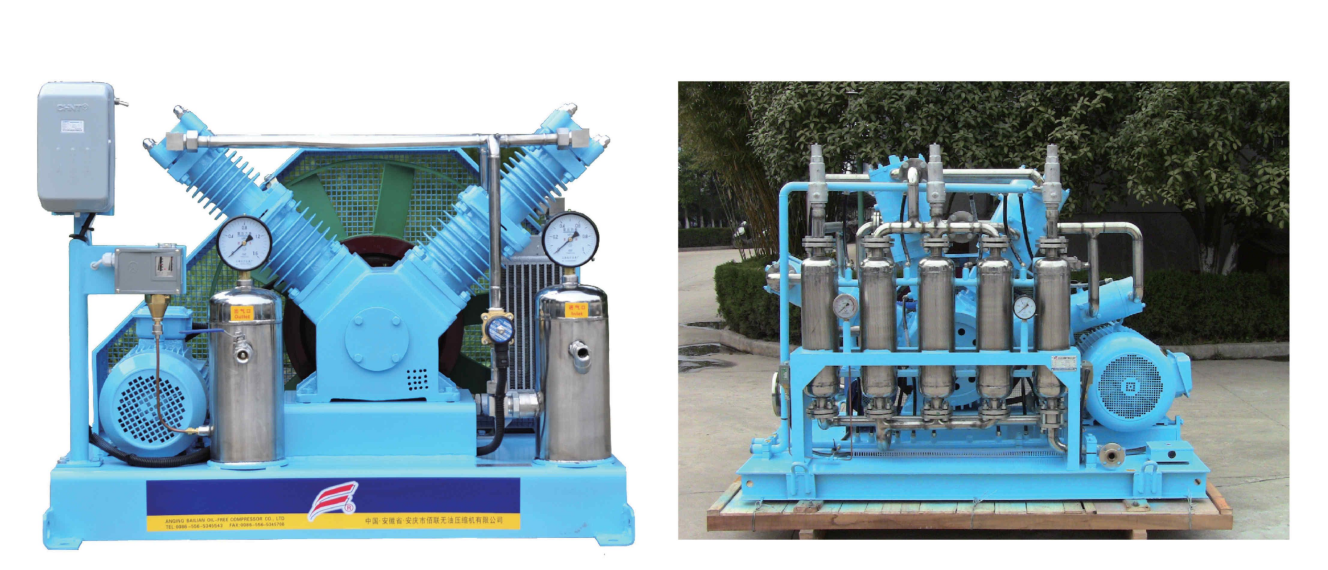

Oxygen Oil Free Booster Compressor

The oilless oxygen compressor produced in strict accordance with the national standard for medium-pressure oxygen compressor has the prominent characteristics of safety, reliability etc.,free of pollution to the be compressed, and becomes your first choice bentuse of its advantages of simple control, convenient maintenance etc.

Performance characteristics

Air -cooled or water-cooled type
Power range:< 55 KW
Speed range: 300-600r/min
Flow rang: 1000 Nm3/h
Intake pressure:0-0.6MPa
Exhaust pressure:<10.0M
Pacompression stage: 1-4 class

Our oxygen compressor is total oil free, do not use any lubricate oil, and for the cylinder use stainless steel material, piston ring is self-lubricated material, all this guarantee oxygen is clean and no-pollution. Compressor working speed is slow, normally 200-400 rpm, to keep working do 24 hours heavy duty loading, this Oxygen compressor main use for hospital oxygen supplier center, to increase oxygen supply line pressure to the room, also can boost oxygen, and filling to the cylinder, such as 15Mpa, 20Mpa, also our oxygen booster, can use in Industrial acetylene cutting, cutting steel scrap in steel factory, support Boiler oxygen combustion recycle the cryogenic liquid oxygen tank vapor oxygen to the tank. Normally, according to customer oxygen application condition, our oxygen compressor has one pressure stage, two pressure stage, three pressure stage, and four pressure stage, and five pressure stage, by the cylinder, has single, double, three, and four cylinder.

Advantages

Compact structure, operation, maintenance cost is low
