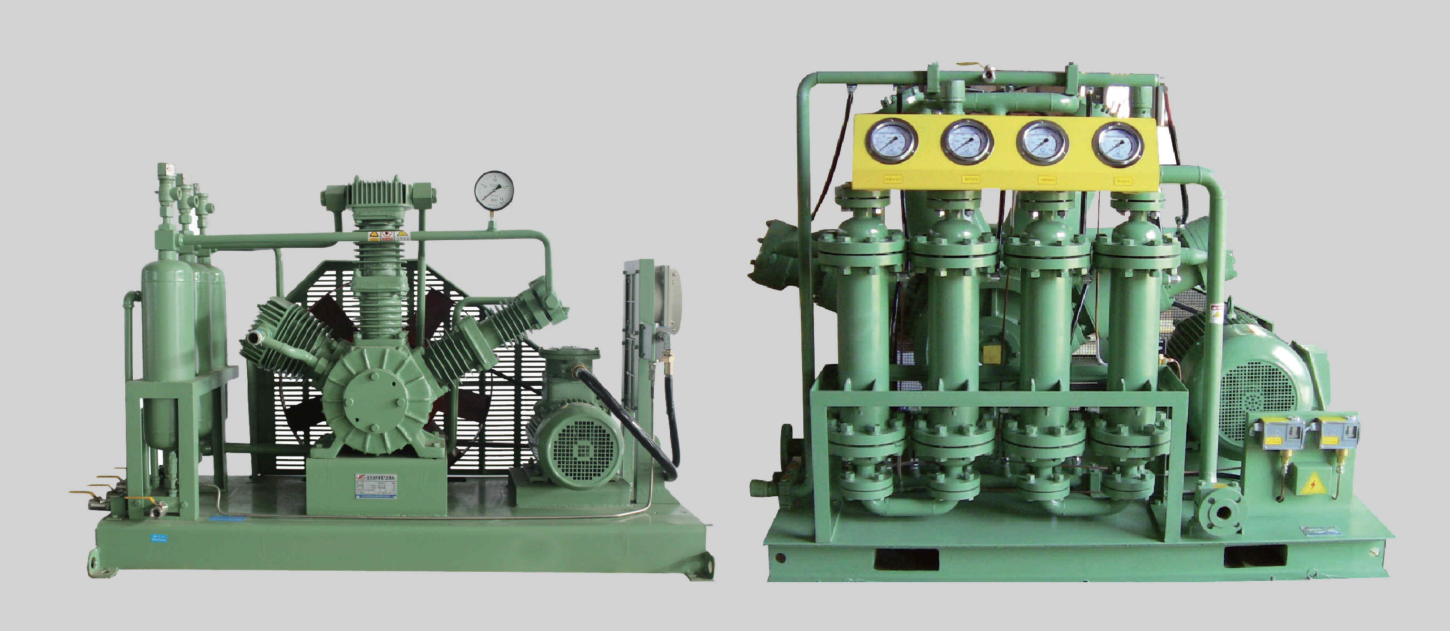

Hydrogen Oil Free Booster Compressor

Performance characteristics

Air - cooled or water-cooled type

Power range: <55KW

Speed range: 400-600r/min

Flow rang: 400Nm3/h

Intake pressure: <0.2MPa

Exhaust pressure: <15MPa

Compression stage: 1-4 class

Hydrogen Compressor Oil-free lubrication and sealed hydrogen compressor is one of the products that elaborately designed and manufactured by our company.

This hydrogen compressor is oil free lubrication, It's water cooling way. This product has advantages such as: firm structured, high efficiency, small vibration, compressed hydrogen is free from contaminated by oil, simple operation, safe and reliable, complete units, etc.

This hydrogen compressor consists of main compressor, explosion-proof motor or ordinary motor, cooler (cooler, after cooler), inlet air filter, gearing, instruments, automatic suction and discharge pressure controller, safety valve for each stage, check valves, solenoid valves, pipes, general base and explosion-proof magnetic starter, etc.

For some hydrogen compressor is to increase hydrogen pressure in order to do in steel heat treatment, Some others use condition, make circulating hydrogen as raw material for industrial reactions, and hydrogen compressor provide continues hydrogen pressure for the reactor.

In future, hydrogen compressor will have much more use in Hydrogen fuel cell, to boost hydrogen very high pressure and filling to the hydrogen car, get clean green and no pollution energy.
