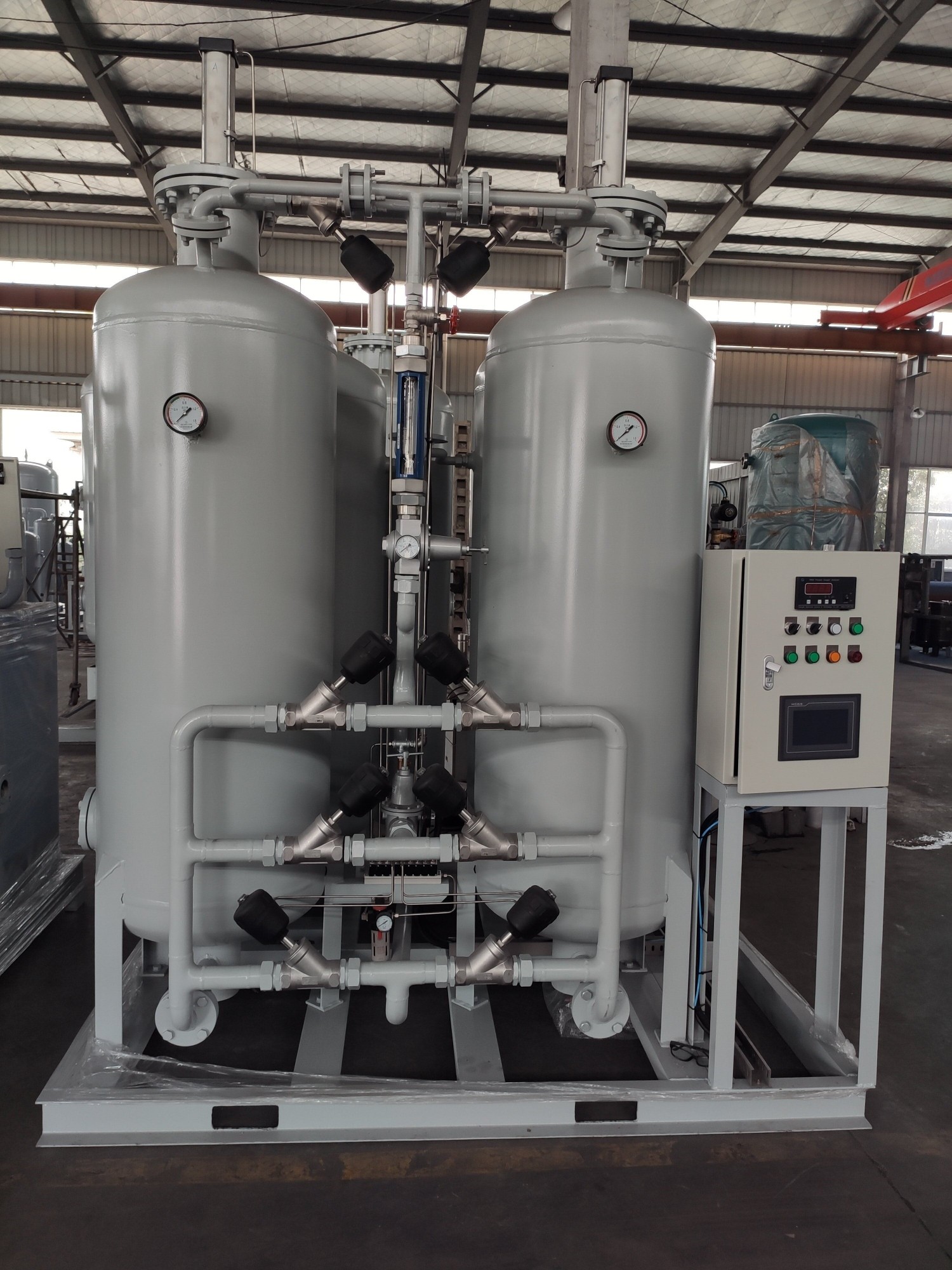

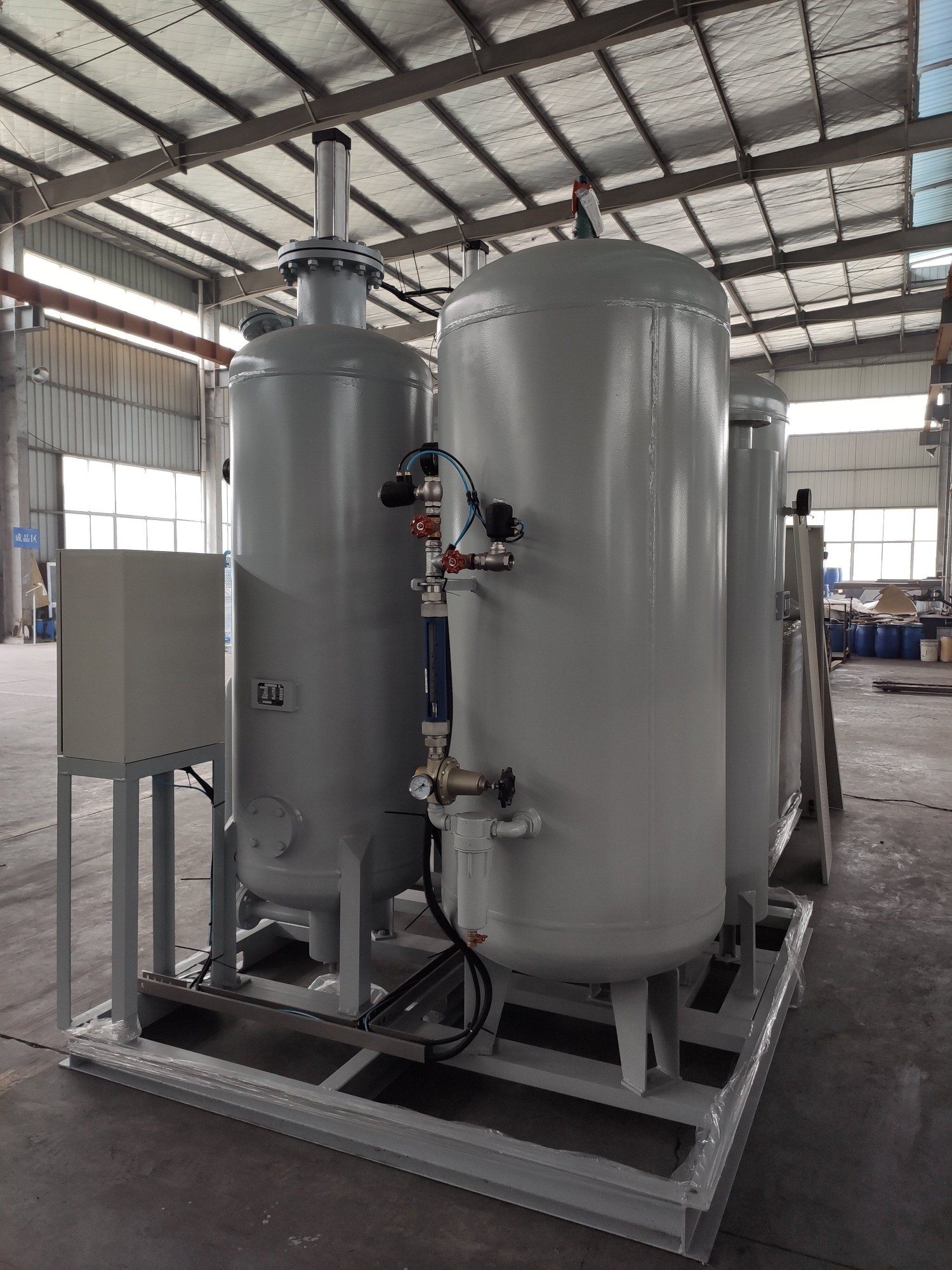

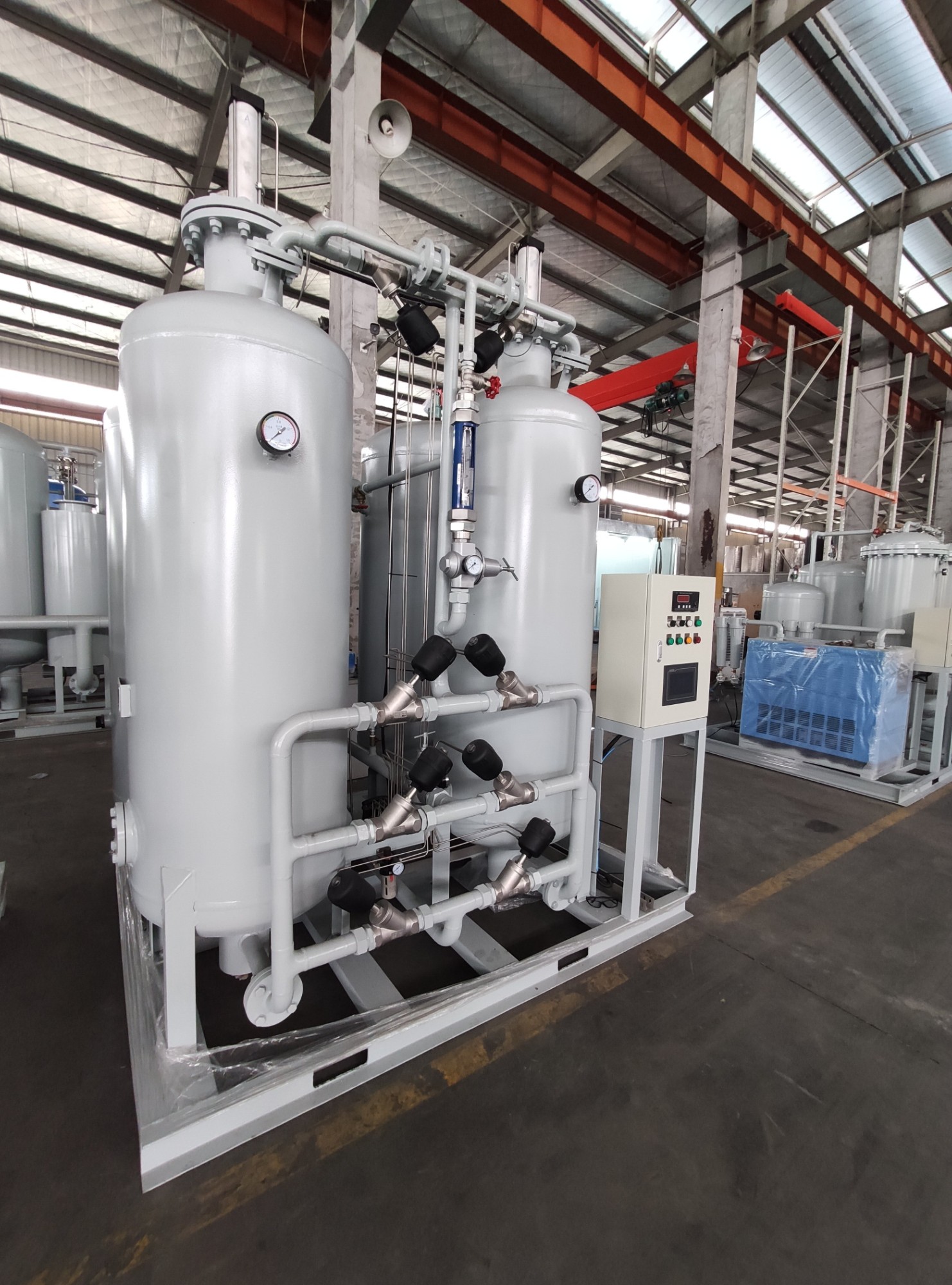

Medical oxygen generator

     Colour touch screen control

• Built in purity analyzer for constant monitoring

• Data-logging via USB interface

• Modbus TCP. Ethernet connection

• Remote start/stop relay

• Stainless steel piping

• Designed for dynamic pressure loading

• Purity control – off spec purge

• Audio-visual alarm

      Optional add-ons

• Flow control valve – flow & purity adjustment

• Energy saving valve – reduces compressed air usage

• during turn down

• Sequential start/stop – one button operation

• SMS alarm

• Remote monitoring

• and others

     Operating conditions

• Ambient temperature range 5°C to 50°C

• Oxygen outlet pressure 4 - 6 bargG

• Oxygen dew point -50°C ( -70°C)

• Air inlet pressure 7.5 to 10 barG

• Inlet air quality ISO: 8573.1:2010 class 1.4.1.

• Pressure dew point 3°C

• Filtration grade 0.01 micron

• Power supply 110-240V / 50-60Hz

       Notes

     Performance data is based on 7 barG inlet pressure and 20°C to 30°C ambient temperature. Flow stated in cubic meter (m3) is with reference conditions, Temperature: 20°C, Pressure: 1.013 barA. Conversion factor for m3 with reference conditions, Temperature: 0°C, Pressure: 1.013 barA is 0.69 m3/kg. Designs and specifications are subject to change without notice or obligation.

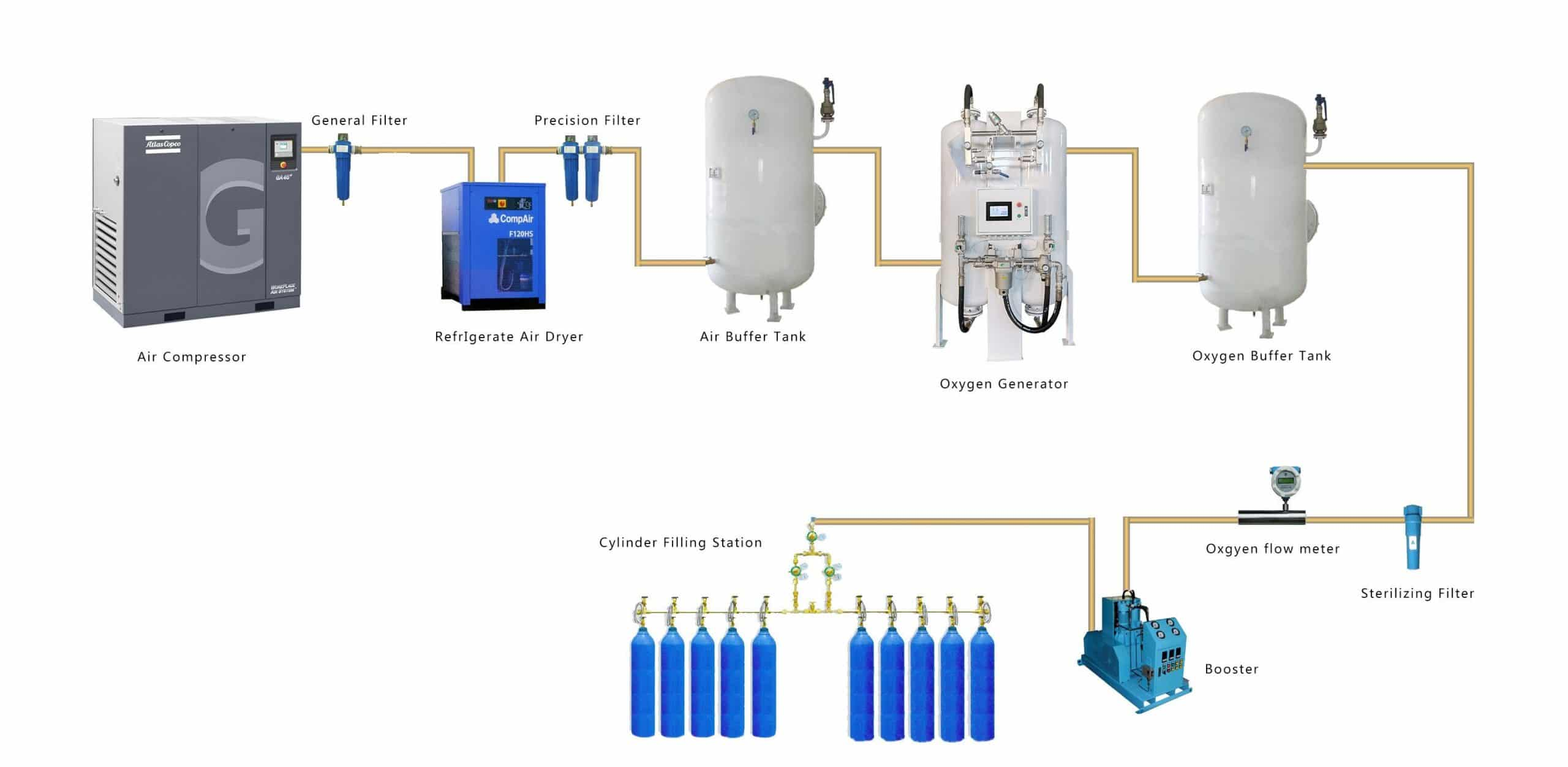

     Installation alternatives

• generating system including air treatment

• stand-alone installation

• skid mounted variant

• containerized version

• oxygen generating system with cylinder filling station

• partial filling station




   KEY Benefits

• Flexibility

• Cost effective

• Safety

• Easy operation

• Reliability

    CERTIFICATES

      ISO 9001；ISO 13485；Certificate of conformity of medical devices Quality management system certification；Occupational health and safety management system certificate；Risk management report；Quality management system certificate；Oxygen purity (%)  CO2 and CO impurity report；CE certificates &CERTIFICATE FREE SALE,and with each main accessories of Operation Manual.
