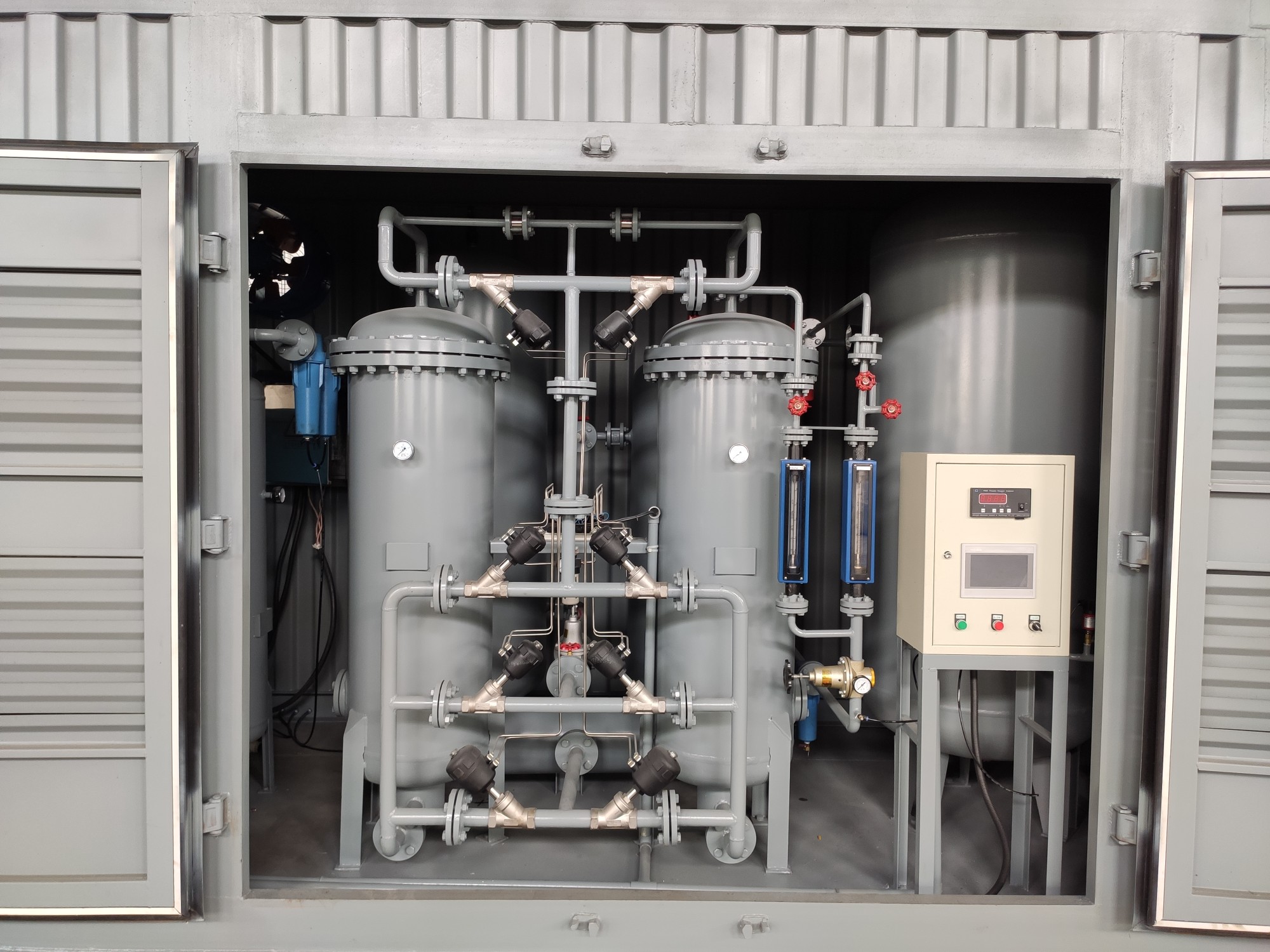

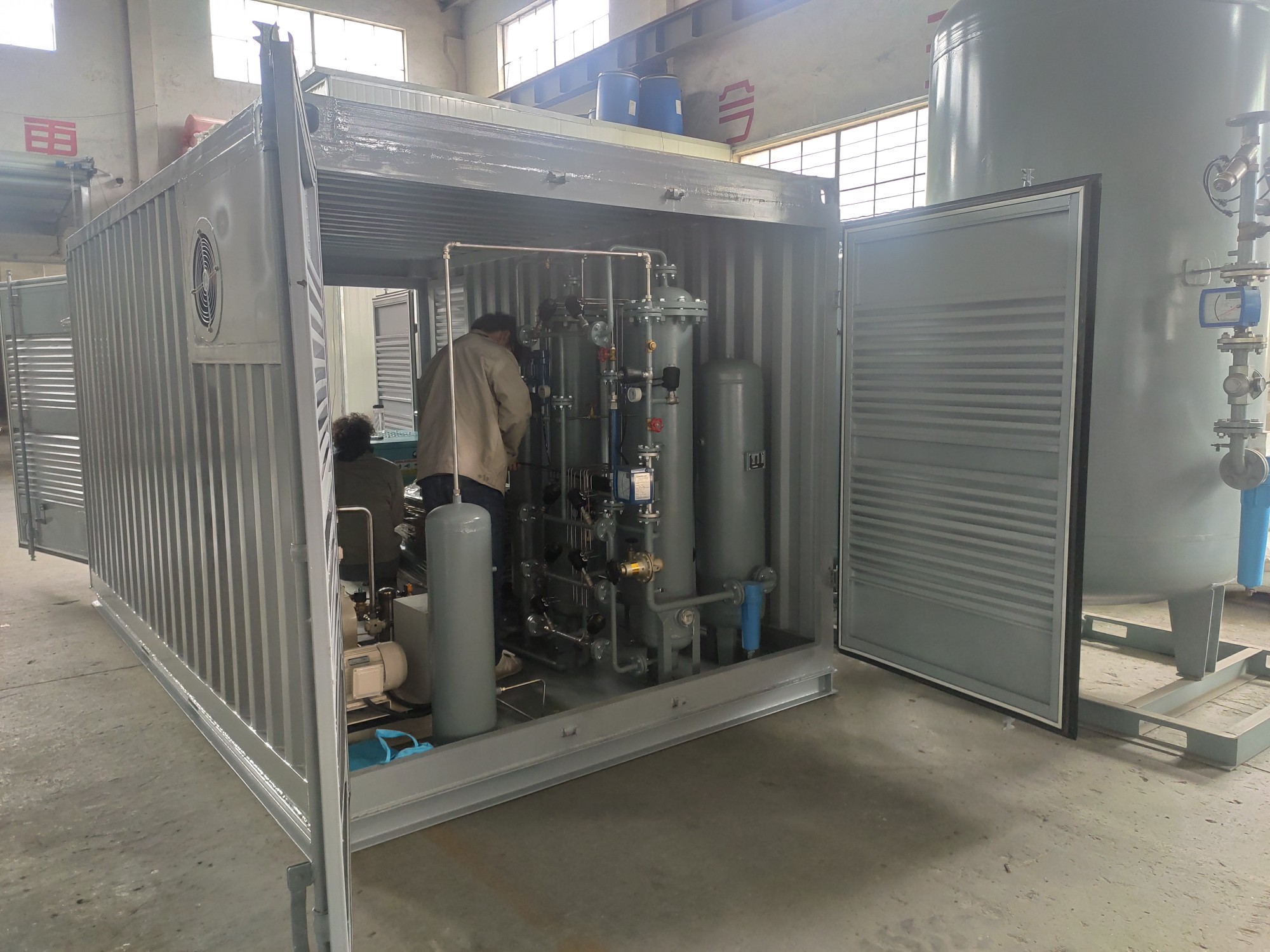

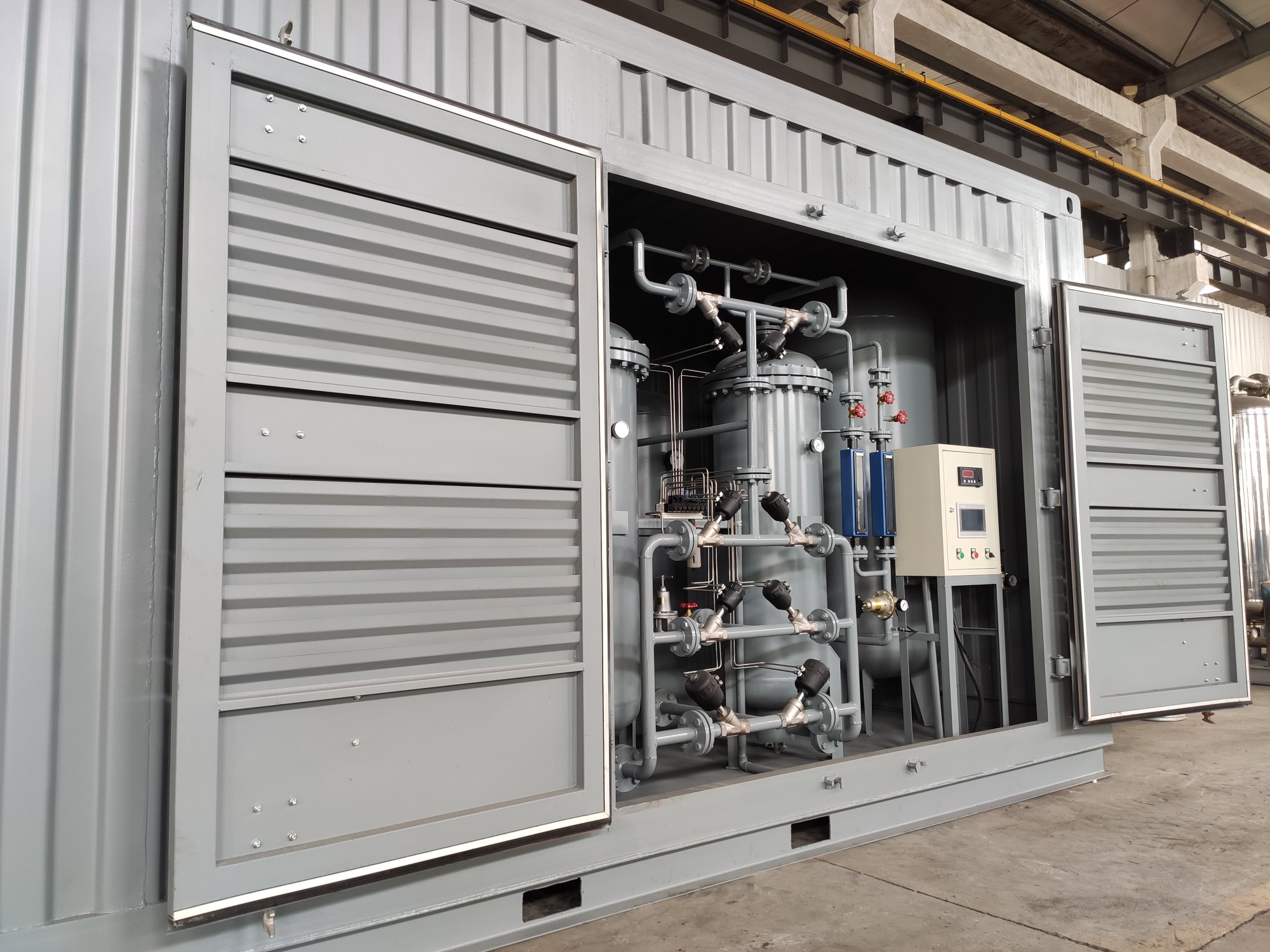

Containerized oxygen plant-Medical Oxygen generator

 Containerized & Medical PSA Oxygen Plant Options

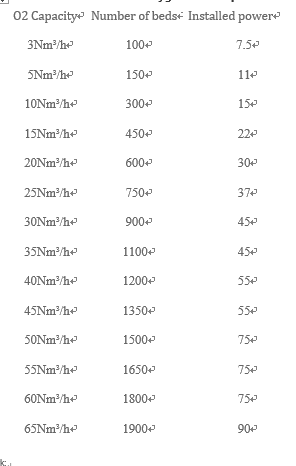

     Remark:

• 1. The data listed in this table are based on the raw material compressed air of 0.6MPa (gauge pressure), the ambient temperature of 20℃, the elevation of 0m and the humidity of 80% as the design basis;

• 2. The installation environment and site are indoor explosion-proof areas, the ambient temperature must be ≤45 °C, and the ventilation conditions are good;

• 3. System installation power supply conditions: 220/380V, 50HZ(Customized voltage available), when the oxygen pressure is higher than 0.5MPa, it can be pressurized to the pressure required by the user;

• 4. The installed power in the table refers to the installed power of the compressor, and other required powers are added;

• 5. The operating noise of the system can be kept at 80 points;

• 6. Applicable beds are for reference only. All data are subject to change, the actual data shall prevail.

•


     Standard Features

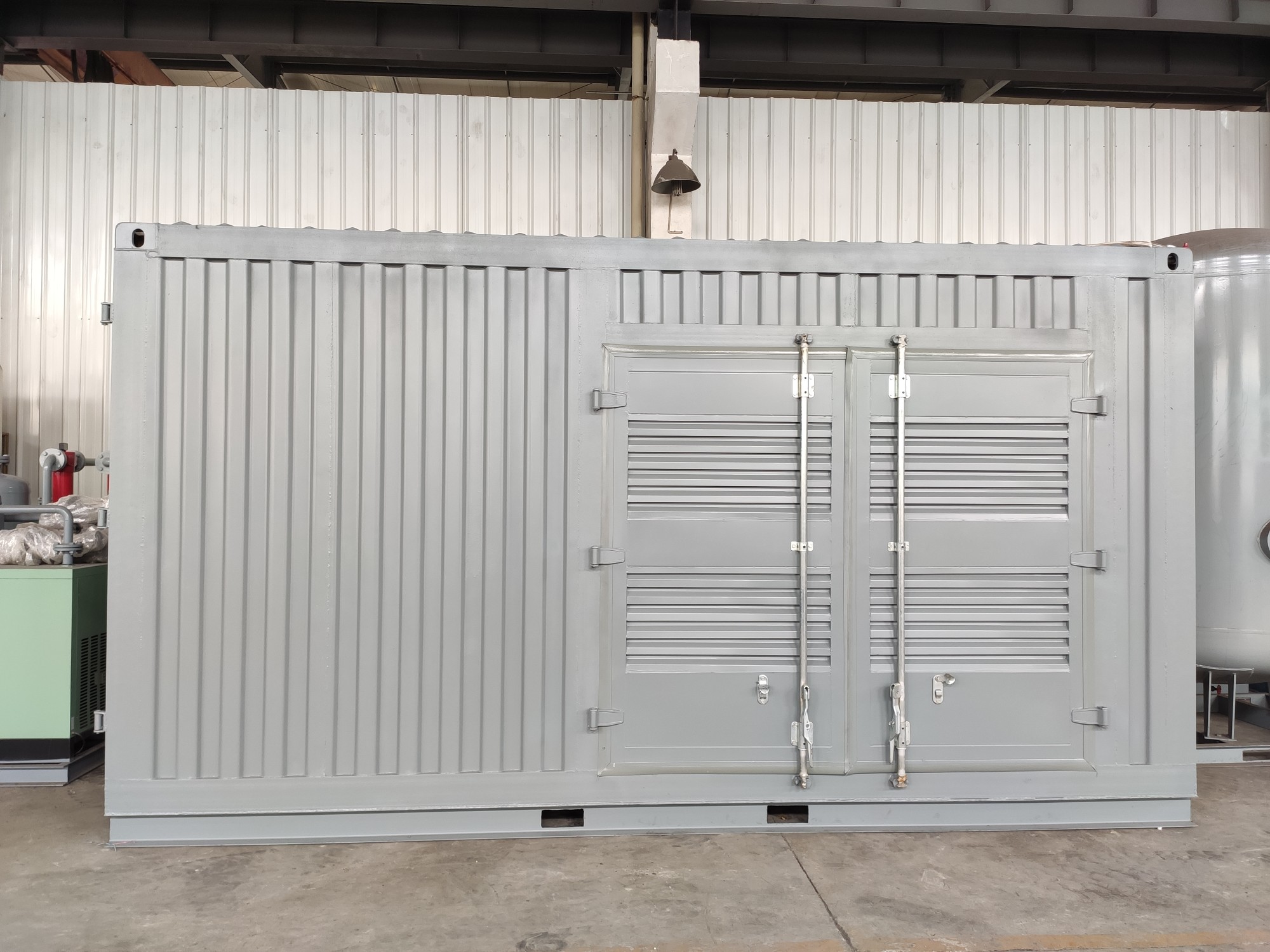

• -Transportable (ISO standard bolt on corners and fork lift  points)

• -Turnkey, plug & play solution

• -Designed for outdoors - the container provides

• excellent protection against wind, rain and sun.

• -Automatic start and stop operation

• -Available oxygen outlet from 4 - 8 barG; Oxygen

• cylinders are filled at 150barG to 200barG

• -Oxygen purity from 93% to 95%

    Optional add-ons

• -Sequential start/stop system – one button operation

• -Surveillance system – monitors the oxygen

• concentration of the ambient air in the container

• -CSC approval – certification for sea transport

• -SIBIRIA – nordic version for temperatures down to

• -50°C

• -Automatic fire detection system

• -Audio/visual alarm
