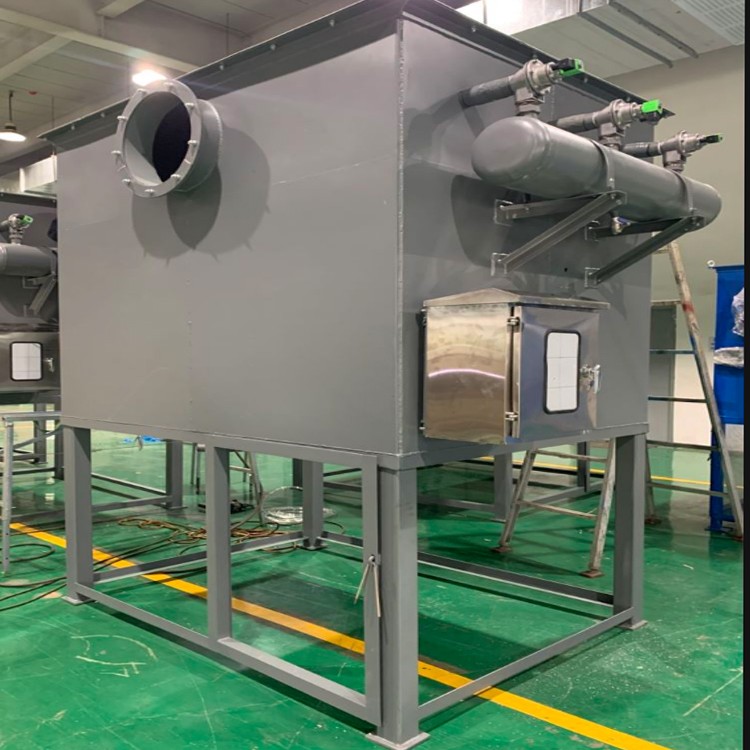

Self-cleaning air filter

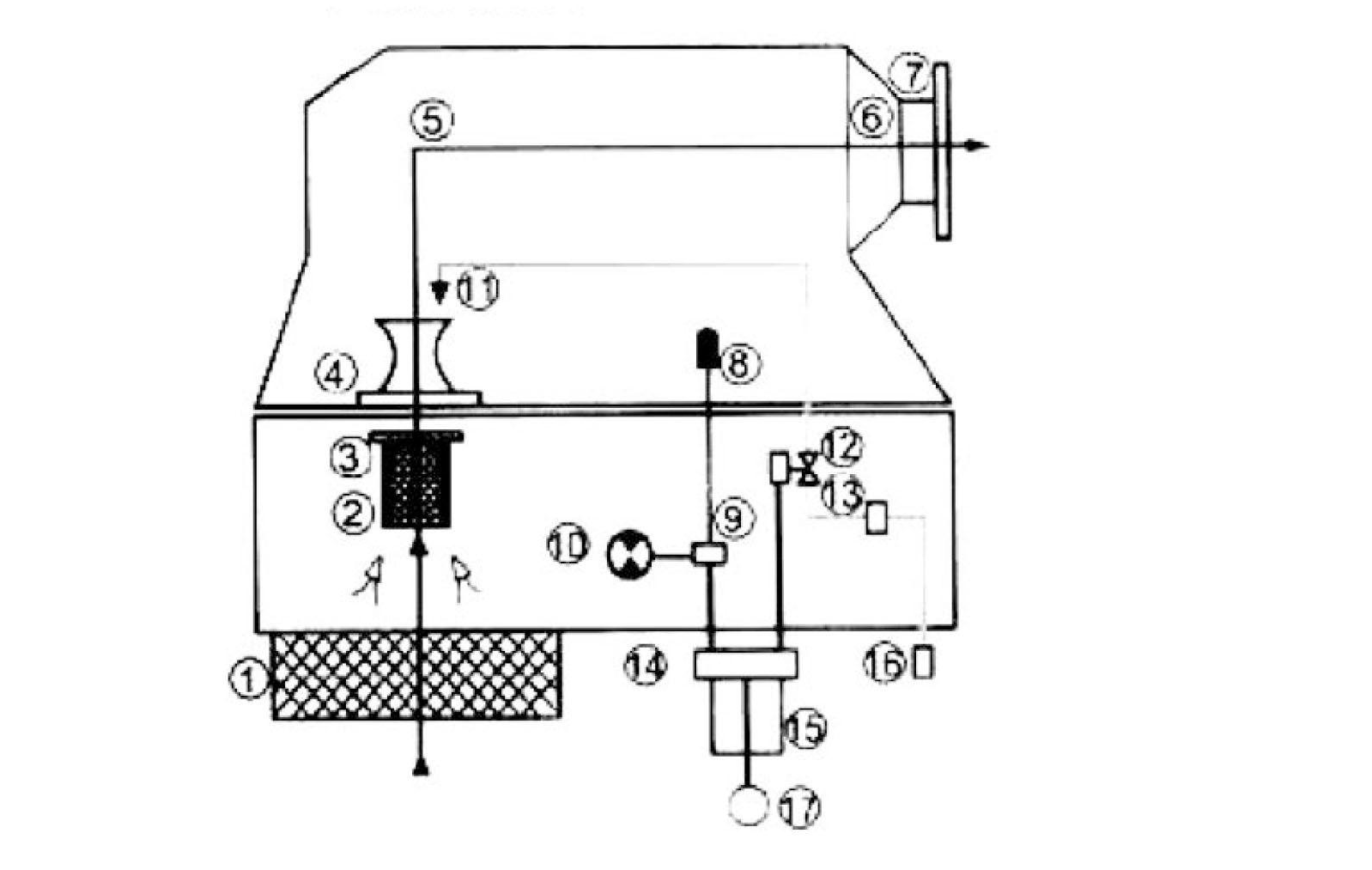

Structural principle process

1. Primary coarse filter box  2. High efficiency filter cartridge  3. Gasket

  4. Venturi 5. Clean air pipe 6. Air collection port  7. Clean air outlet pipe

  8. Negative pressure probe  9. Negative pressure difference controller  10 Negative pressure difference alarm

  11. Backflushing gas nozzle 12. Pulse solenoid valve 14. Programmable controller (PLC)

   13. Oil-water separator 15. Controller 16. Compressed air inlet 17. Power plug

A. The red line is the circuit line. B. The green line is the filtering process. C. The yellow line is the self-cleaning process.

Process principle description

Filter process

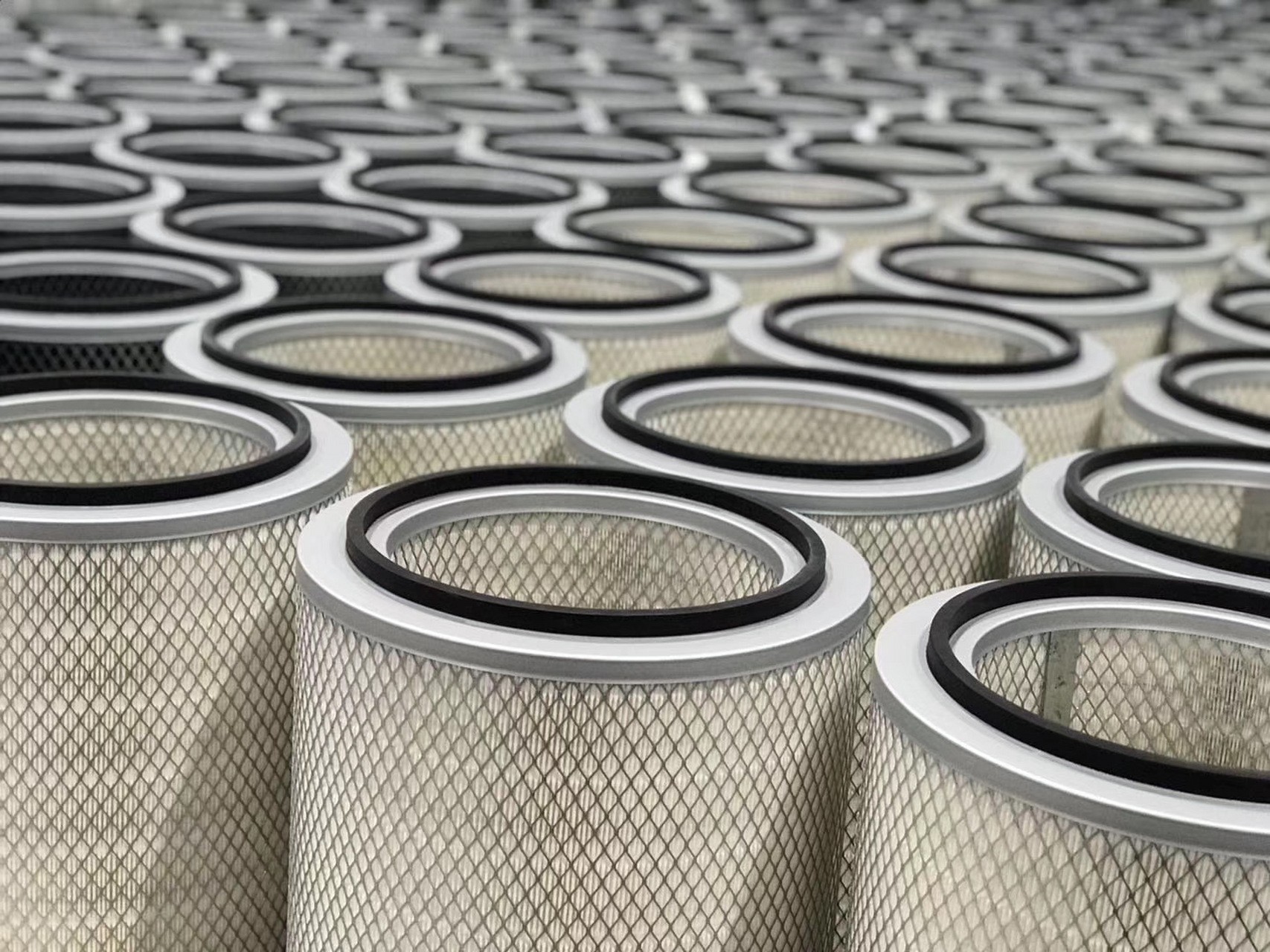

After the air passes through the filter element, due to the combined effects of gravity, inertial diffusion, static electricity, and contact retention, dust settles and accumulates on the filter element, and the clean air is sent to the air through the venturi tube. Export.

Self-cleaning process

The dust on the air filter element is automatically controlled by the microcomputer through timing or constant pressure difference, and the filter element is blown back in turn, and the sediment particles are blown into the atmosphere. Only one group (six) of filter elements are used each time during the self-cleaning process. 30 seconds, other filter elements are still in normal filtration working state, ZKG runs as usual

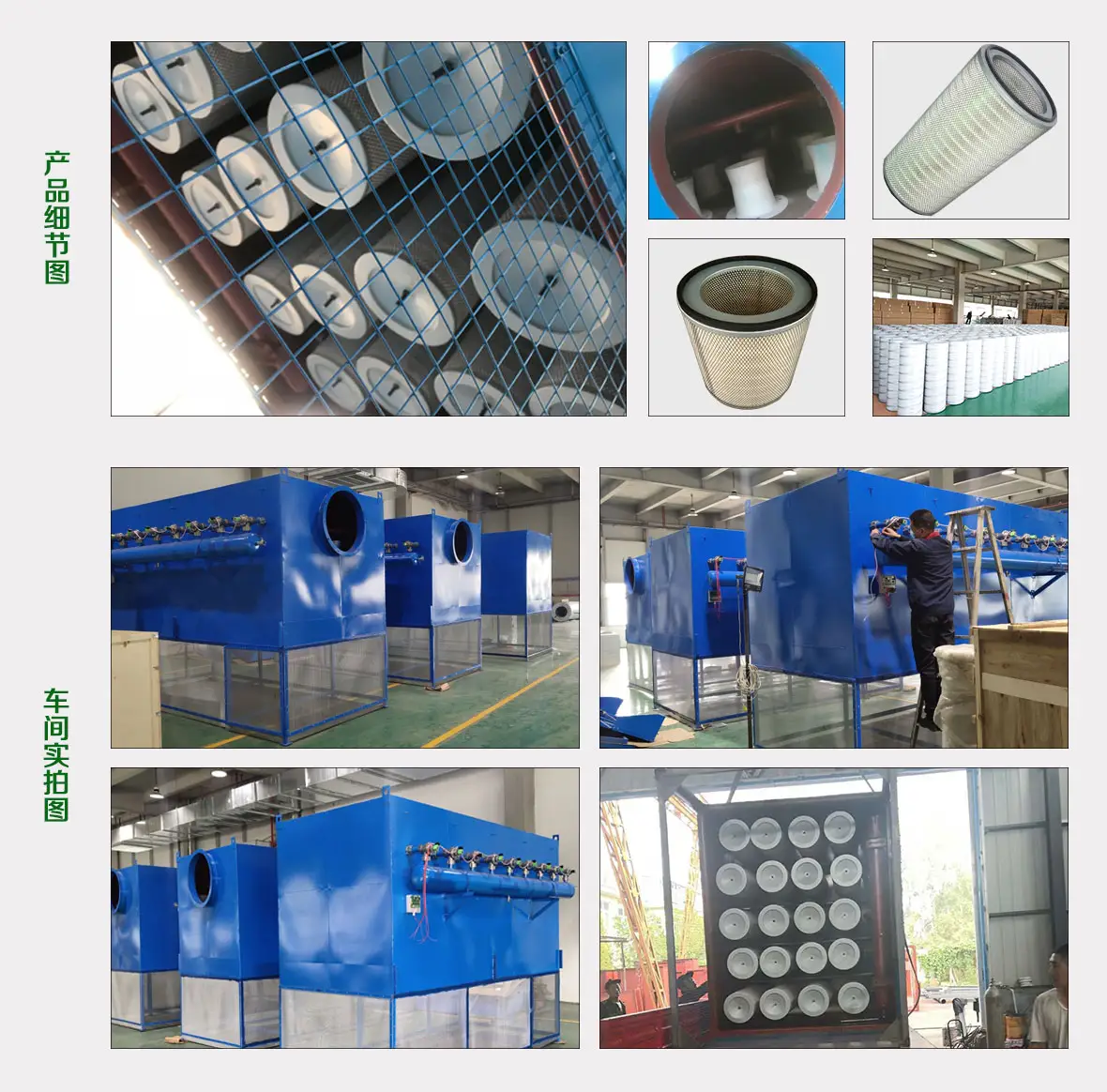

Technical features

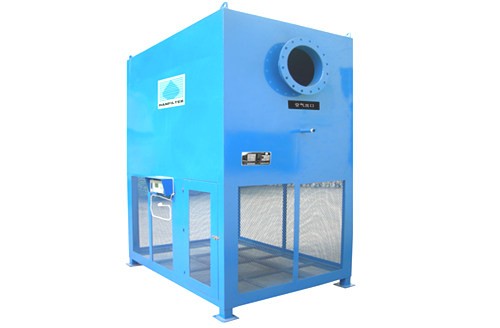

(ZKG-800) Pneumatic self-cleaning air filter control system adopts full digital control, can run for a long time, has the characteristics of stable work and high control precision, and can modify the program according to customer requirements. Production status. All control loops are completed by programmable controllers. The command signal output by the computer makes the solenoid valve open and close, so as to open and close the self-cleaning gas source to achieve the purpose of self-cleaning of the filter.
