Product Description

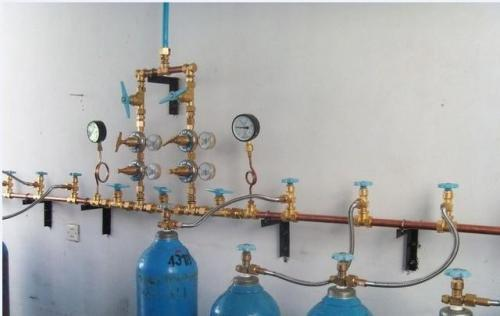

Double-Side Gas Cylinder Manifold for Cutting Machine

Double-side cylinder manifold adopts dual gas supply structure with a main supply cylinder group and a backup cylinder group.

1>Standard Configuration

1. High pressure hoses are metal hoses, or oxygen cylinder manifold uses red copper pipes, the acetylene cylinder manifold uses chrome plated metal stainless steel pipes.

2. Flashback arrestor at the outlet of the acetylene and propane cylinder manifold.

3. For use of acetylene and propane cylinder manifold, the connecting cylinder rack, T-shaped wrench and adaptor are fitted at the outlet end of the acetylene and propane cylinders.

4. Adopting pressure reducer with large flow.

Applications

When the pressure of the main supply cylinder group becomes too low to supply gas, turn off the valve of the main supply cylinder group, and at the same time turn on the valve of the backup cylinder group to start gas supply.

This type of cylinder manifold manually realizes the shift between the main gas supply and the backup one, which can avoid the stop of gas supply.

Filling USE:

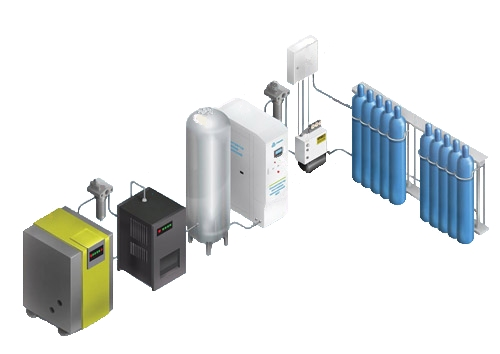

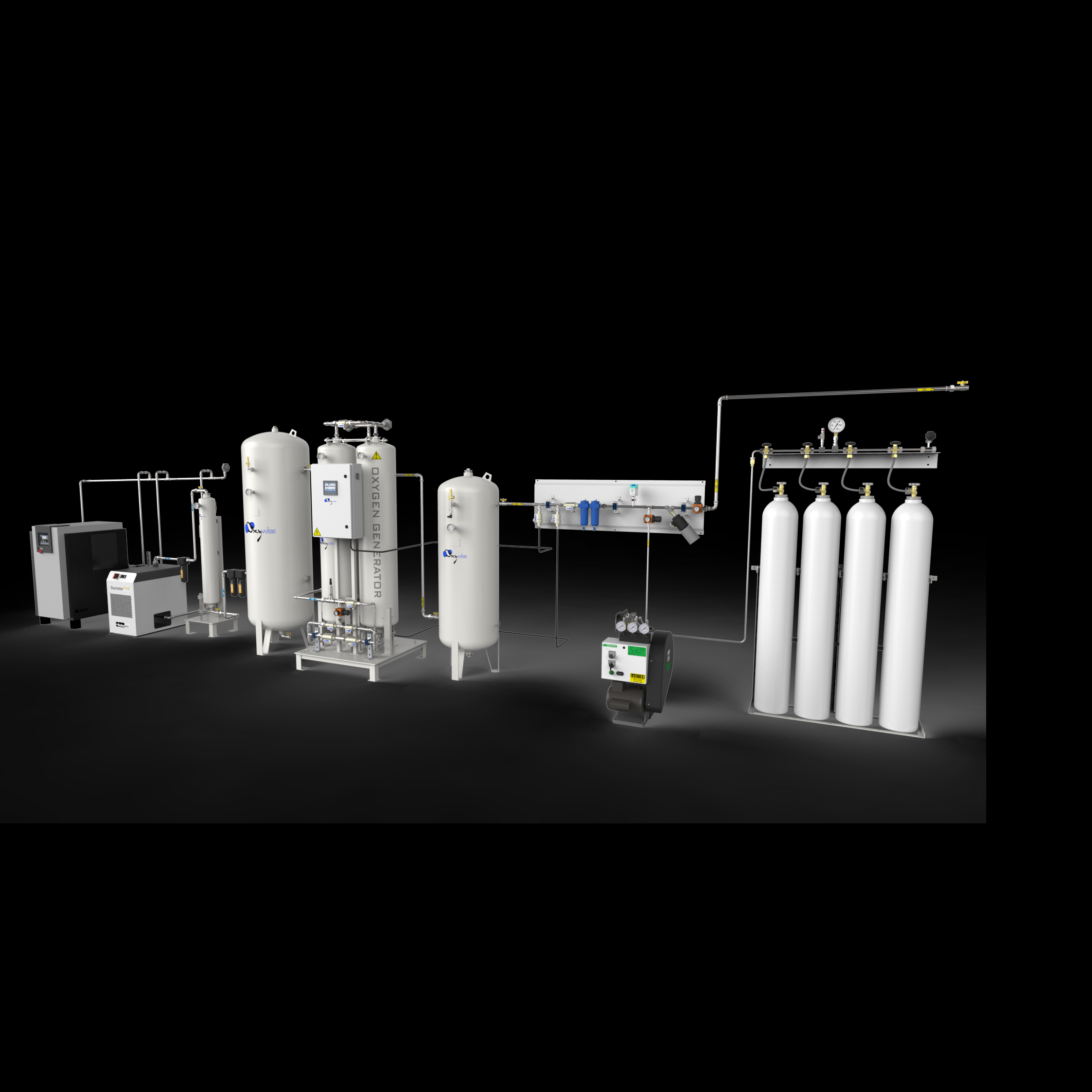

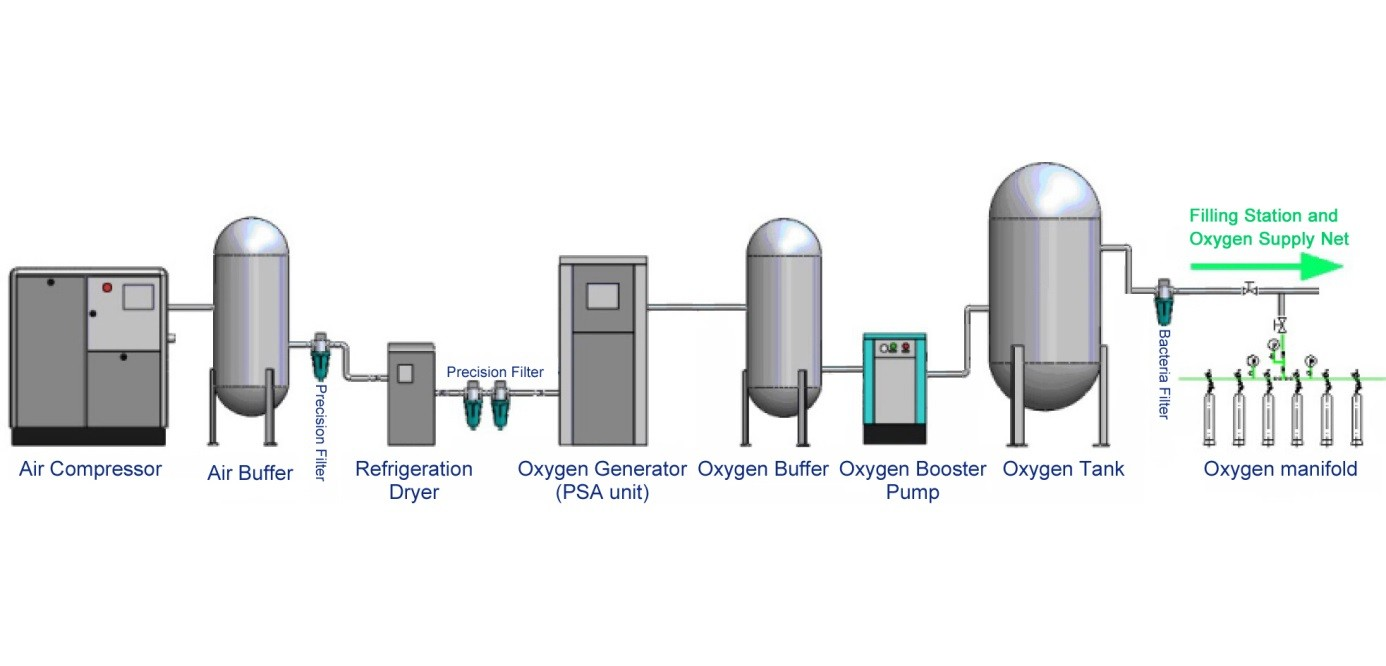

Gas filling station and gas filling row are special equipment for filling gas cylinders with high pressure gas after pressurization (cryogenic liquid pump or compressor). It is composed of explosion-proof wall fixing bracket, collecting tube, switching valve, pressure gauge, safety valve, clamp and hose, etc. It has beautiful appearance, reasonable structure, safety and reliability.
